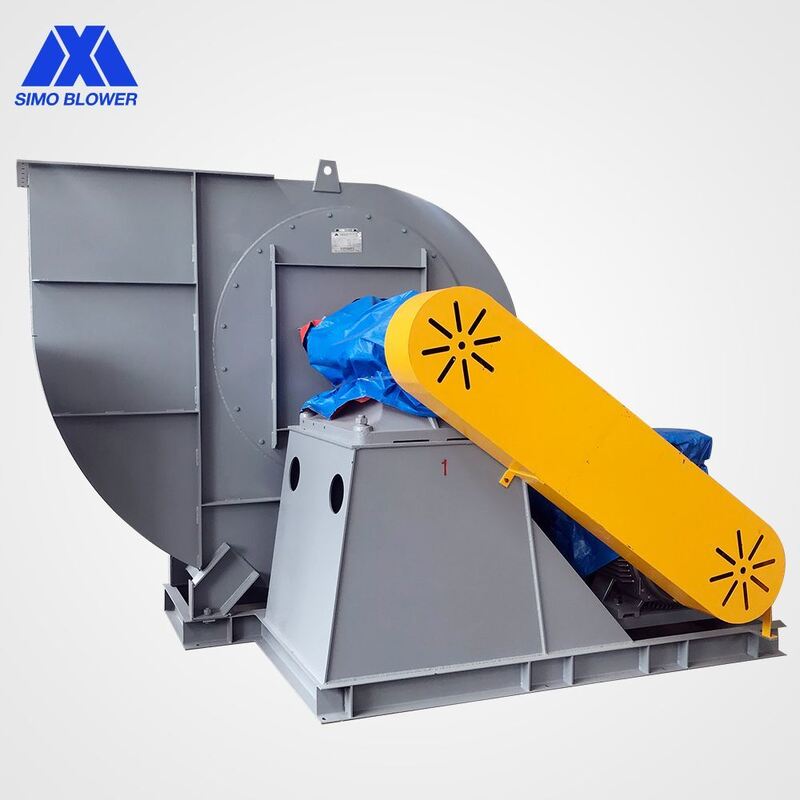

70kw Good Performance High Quality Boiler Centrifugal Blower Fan/Exhaust Fan/ Blower

Name: 70kw Good Performance High Quality Boiler Centrifugal Blower Fan/Exhaust Fan/ Blower
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: Ventilador 5-55 de SIMO
Price: 4,000.00 USD
Availability: InStock

Detalhes do produto:

Lugar de origem:	Henan China
Marca:	SIMO
Certificação:	CE, ISO9001:2008,TUV
Número do modelo:	Ventilador 5-55 de SIMO

Informações detalhadas

Lugar de origem:

Henan China

Marca:

SIMO

Certificação:

CE, ISO9001:2008,TUV

Número do modelo:

Ventilador 5-55 de SIMO

Modelo não:

5-55

Nome:

Fã de esboço induzido da caldeira

Origem:

China

Tensão:

380V/415V/440V/660V/6KV/10KV

Fonte de energia:

Motor AC de três fases

Tipo de rolamento:

Rolamento de rolamento

Serviço OEM:

Fornecer

Testes do impulsor:

Ajuste blancing dinâmico

Montagem:

Em pé livre

Garantia:

1 ano

Destacar:

High Light

Destacar:

70kw boiler centrifugal blower fan

high performance boiler exhaust fan

industrial boiler blower with warranty

Trading Information

Quantidade de ordem mínima:

1 conjunto

Preço:

Negociável

Detalhes da embalagem:

Embalagem de madeira do caso da exportação, embalagem de aço da pálete

Tempo de entrega:

35 dias

Termos de pagamento:

T/T, L/C, termo do pagamento é negociável

Habilidade da fonte:

500 conjuntos por mês

Descrição do produto

70kw Good Performance High Quality Boiler Centrifugal Blower Fan/Exhaust Fan/Blower

The 5-10 series ventilator is a high efficiency and energy saving product developed by our company, which is used for ventilation and exhaust system of smelting, chemical, medicine and dust removal production lines.

In the coal-fired boiler system, the ventilation and induce draft systems of various boilers with evaporation capacity of 20 tons/hour to 800 tons/hour can be configured.

Performance

The following datas are only part of performance of our product.

If you can't find the datas you need, pls send us your performance requirements we will provide you customized design service.

70KW Good performance high quality centrifugal blower fan

Performance	Specification	Unit
Pressure range	1232~3867	Pa
Air flow range	3007-44413	m3/h
Impeller diameter	400~2800	mm
Speed	580~2900	rpm
Material	15kw centrifugal blower case: Q235, Q345, stainless steel (Design as special) 15kw centrifugal blower shaft: 45# steel, Q304, SS304, SS316L 15kw centrifugal blower impeller: Q304, 12Cr1Mov, 15Crmov, 15MnV
Medium	10---120	Dustiness<80 g/m3 (incombustible)
Motor	Siemens, ABB, WN, SIMO, LA (IP 54,55,56, 3 phase)
Optional components	System base frame Protective screening Silencer Inlet & Outlet pipeline compensator Inlet & Outlet flange Damper Electric actuator Shock isolator Diaphragm coupling Fluid coupling Motor rain cover Temperature sensor Vibrating sensor Soft starter Inverter Special Electrical Motor System monitoring Instrument Lube system Overhead lube tank

Manufacturing Process

Pursue excellent quality, make perfect product!

Application

SIMO BLOWER are mainly centrifugal fans and axial flow fans, covering more than 30 series and more than 2,000 specifications, which are widely used in electric power, metallurgy, building materials, coal, petrochemical, industrial kilns and other fields.
