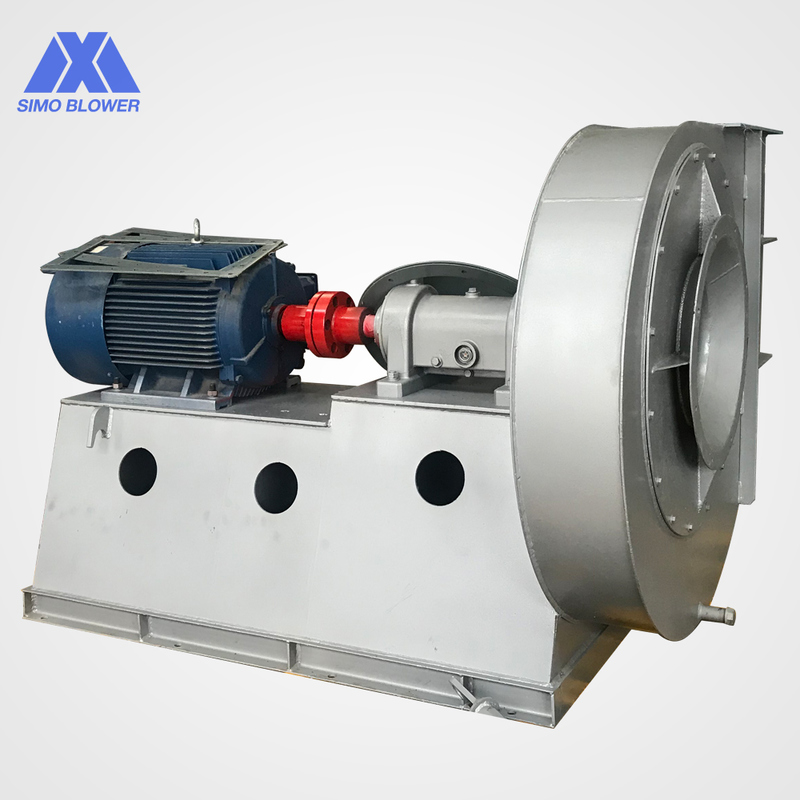

Low-Flow Medium-Pressure High-Efficiency Ventilation Centrifugal Fan Blower

Name: Low-Flow Medium-Pressure High-Efficiency Ventilation Centrifugal Fan Blower
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: Ventilador 6-08 de SIMO
Price: 2,500.00 USD
Availability: InStock

Detalhes do produto:

Lugar de origem:	Henan China
Marca:	SIMO
Certificação:	CE, ISO9001:2008,TUV
Número do modelo:	Ventilador 6-08 de SIMO

Informações detalhadas

Lugar de origem:

Henan China

Marca:

SIMO

Certificação:

CE, ISO9001:2008,TUV

Número do modelo:

Ventilador 6-08 de SIMO

Aplicativo:

Resistente a Industrial/ Explosão

Montando tipos:

Base montada

Faixa de pressão total:

2284-14122PA

Material:

Aço carbono

Tipo de unidade:

Cinto / acionado direto

Velocidade:

≤3500rpm

Tensão:

380V/415V/440V/660V/6KV/10KV

suporte personalizado:

ODM OEM OBM

Rolução de resfriamento:

Resfriamento de ar ou resfriamento de água circulante

Garantia:

1 ano

Destacar:

High Light

Destacar:

low-flow centrifugal fan blower

medium-pressure industrial centrifugal fan

high-efficiency ventilation blower

Trading Information

Quantidade de ordem mínima:

1 conjunto

Preço:

Negociável

Detalhes da embalagem:

Embalagem de madeira do caso da exportação, embalagem de aço da pálete

Tempo de entrega:

15-35 dias

Termos de pagamento:

T/T, L/C, termo do pagamento é negociável

Habilidade da fonte:

500 conjuntos por mês

Descrição do produto

Low-Flow Medium-Pressure High-Efficiency Ventilation Centrifugal Fan Blower

Low-Flow Medium-Pressure High-Efficiency Ventilation Centrifugal Fan blower
Low-Flow Medium-Pressure High-Efficiency Ventilation Centrifugal Fan is a fan product designed by us. It is widely used in environmental dust removal, material transportation, and industrial equipment. If you need it, please feel free to contact us and provide your relevant parameters. Our design engineers customize centrifugal fans for your plant.

Product Features

This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.
The current collector and impeller front plate are processed by advanced spinning process, and the precision is guaranteed.
V-belt and coupling drivetrain fan is equipped with integral bearing housing, good lubrication, stable operation, long bearing life.
Equipped with tapered sleeve embedded pulley, easy to disassemble.
The collector is equipped with a mounting flange to facilitate the customer to use the pipeline.

Product Parameters

The following datas are only part of performance of our product.
If you can't find the datas you need, pls send us your performance requirements
we will provide you customized design service.

Series no.	6-08 series	Feature selection
Performance	Impeller diameter	400-2800mm
	Rotation speed	≤3000rpm
	Pressure range	2284-14122Pa
	Flow range	1381-261494m³/h
Structure	Blade type	Backward, Straight, Aerofoil type
	Impeller support	SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type
	Lubrication method	Oil bath lubrication, grease lubrication, lubrication oil station
	Cooling method	Air cooling, Water cooling, Oil cooling
Driven mode	Direct driven, Coupling driven, Belt driven
Gas composition	Gas temperature	Normal \| Customer request \| Customer request \| ≥250ºC \| Customer request
Gas composition	gas characteristic	Clean gas \| Corrosive gas \| Particulate dust \| High temperature gas \| Flammable gas, explosive gas
System configuration	Motor brand	Chinese famous brand, ABB, Siemens, WEG etc
	Impeller	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| Wear-resistant layer or wear-resistant liner, ceramic patch \| High temperature high quality alloy steel \| FRP, Aluminum alloy
	Air inlet cone	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| High quality carbon steel \| High quality carbon steel \| High quality carbon steel
	Casing	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| High quality carbon steel \| High quality carbon steel \| High quality carbon steel
	Air damper	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| High quality carbon steel \| High quality carbon steel \| High quality carbon steel
	Main shaft	High strength carbon steel, Alloy structural steel
	Bearing	ZWZ, SKF, FAG, NSK
	Bearing housing	Cast iron
	Foundation bolts	GB799-1988
Option parts	System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.

Detailed Photos

Manufacturing Process

Our Advantages

Company Profile

Customers Case

Packaging & Shipping

FAQ

Please provide the fan operating conditions and parameter information, and the business manager will give you a quote
